solved transportation problems in operations research

Operations Research/Transportation and Assignment Problem

The Transportation and Assignment problems deal with assigning sources and jobs to destinations and machines. We will discuss the transportation problem first.

Suppose a company has m factories where it manufactures its product and n outlets from where the product is sold. Transporting the product from a factory to an outlet costs some money which depends on several factors and varies for each choice of factory and outlet. The total amount of the product a particular factory makes is fixed and so is the total amount a particular outlet can store. The problem is to decide how much of the product should be supplied from each factory to each outlet so that the total cost is minimum.

Let us consider an example.

Suppose an auto company has three plants in cities A, B and C and two major distribution centers in D and E. The capacities of the three plants during the next quarter are 1000, 1500 and 1200 cars. The quarterly demands of the two distribution centers are 2300 and 1400 cars. The transportation costs (which depend on the mileage, transport company etc) between the plants and the distribution centers is as follows:

Which plant should supply how many cars to which outlet so that the total cost is minimum?

The problem can be formulated as a LP model:

$x_{ij}$

The whole model is:

subject to,

$x_{11}+x_{12}=1000$

The problem can now be solved using the simplex method. A convenient procedure is discussed in the next section.

Book:Operations Research

Solving a multi-objective solid transportation problem: a comparative study of alternative methods for decision-making

Mohamed H. Abdelati ORCID: orcid.org/0000-0002-5034-7323 1 ,
Ali M. Abd-El-Tawwab 1 ,
Elsayed Elsayed M. Ellimony 2 &
M Rabie 1

Journal of Engineering and Applied Science volume 70 , Article number: 82 ( 2023 ) Cite this article

859 Accesses

Metrics details

The transportation problem in operations research aims to minimize costs by optimizing the allocation of goods from multiple sources to destinations, considering supply, demand, and transportation constraints. This paper applies the multi-dimensional solid transportation problem approach to a private sector company in Egypt, aiming to determine the ideal allocation of their truck fleet.

In order to provide decision-makers with a comprehensive set of options to reduce fuel consumption costs during transportation or minimize total transportation time, a multi-objective approach is employed. The study explores the best compromise solution by leveraging three multi-objective approaches: the Zimmermann Programming Technique, Global Criteria Method, and Minimum Distance Method. Optimal solutions are derived for time and fuel consumption objectives, offering decision-makers a broad range to make informed decisions for the company and the flexibility to adapt them as needed.

Lingo codes are developed to facilitate the identification of the best compromise solution using different methods. Furthermore, non-dominated extreme points are established based on the weights assigned to the different objectives. This approach expands the potential ranges for enhancing the transfer problem, yielding more comprehensive solutions.

This research contributes to the field by addressing the transportation problem practically and applying a multi-objective approach to support decision-making. The findings provide valuable insights for optimizing the distribution of the truck fleet, reducing fuel consumption costs, and improving overall transportation efficiency.

Introduction

The field of operations research has identified the transportation problem as an optimization issue of significant interest [ 1 , 2 ]. This problem concerns determining the optimal approach to allocate a given set of goods that come from particular sources to the designated destinations to minimize the overall transportation costs [ 3 ]. The transportation problem finds applications in various areas, including logistics planning, distribution network design, and supply chain management. Solving this problem relies on the assumption that the supply and demand of goods are known, as well as the transportation cost for each source–destination pairing [ 4 , 5 ].

Solving the transportation problem means finding the right quantities of goods to be transported from the sources to the destinations, given the supply and demand restrictions. The ultimate goal is to minimize the total transportation cost, which is the sum of the cost for each shipment [ 6 ]. Various optimization algorithms have been developed for this problem, such as the North-West Corner Method, the Least Cost Method, and Vogel’s Approximation Method [ 7 ].

A solid transportation problem (STP) is a related transportation problem that centers around a single commodity, which can be stored at interim points [ 8 ]. These interim points, known as transshipment points, act as origins and destinations. The STP involves determining the most efficient means of transporting the commodity from the sources to the destinations, while minimizing transportation costs by going through the transshipment points. The STP has real-world applications in container shipping, air cargo transportation, and oil and gas pipeline transportation [ 9 , 10 ].

Multi-dimensional solid transportation problem (MDSTP) represents a variation on the STP, incorporating multiple commodities that vary in properties such as volume, weight, and hazard level [ 11 ]. The MDSTP aims to identify the best way to transport each commodity from the sources to the destinations, taking into account the capacity restrictions of transshipment points and hazardous commodity regulations [ 12 ]. The MDSTP is more complex than the STP and requires specific algorithms and models for its resolution.

Solving the STP and MDSTP requires identifying the most effective routing of commodities and considering the storage capacity of transshipment points. The goal is to minimize total transportation costs while satisfying supply and demand constraints and hazardous material regulations. Solutions to these problems include the Network Simplex Method, Branch and Bound Method, and Genetic Algorithm [ 13 ]. Solving the STP and MDSTP contributes valuable insights into the design and operation of transportation systems and supports improved sustainability and efficiency.

In the field of operations research, two critical research areas are the multi-objective transportation problem (MOTP) and the multi-objective solid transportation problem (MOSTP) [ 14 ]. The MOTP aims to optimize the transportation of goods from multiple sources to various destinations by considering multiple objectives, including minimizing cost, transportation time, and environmental impacts. The MOSTP, on the other hand, focuses on the transportation of solid materials, such as minerals or ores, and involves dealing with multiple competing objectives, such as cost, time, and quality of service. These problems are essential in logistics and supply chain management, where decision-makers must make optimal transportation plans by considering multiple objectives. Researchers and practitioners often employ optimization techniques, such as mathematical programming, heuristics, and meta-heuristics, to address these challenges efficiently [ 15 ].

Efficient transportation planning is essential for moving goods from their source to the destination. This process involves booking different types of vehicles and minimizing the total transportation time and cost is a crucial factor to consider. Various challenges can affect the optimal transportation policy, such as the weight and volume of products, the availability of specific vehicles, and other uncertain parameters. In this regard, several studies have proposed different approaches to solve the problem of multi-objective solid transportation under uncertainty. One such study by Kar et al. [ 16 ] used fuzzy parameters to account for uncertain transportation costs and time, and two methods were employed to solve the problem, namely the Zimmermann Method and the Global Criteria Method.

Similarly, Mirmohseni et al. [ 17 ] proposed a fuzzy interactive probabilistic programming approach, while Kakran et al. [ 18 ] addressed a multi-objective capacitated solid transportation problem with uncertain zigzag variables. Additionally, Chen et al. [ 19 ] investigated an uncertain bicriteria solid transportation problem by using uncertainty theory properties to transform the models into deterministic equivalents, proposing two models, namely the expected value goal programming and chance-constrained goal programming models [ 20 ]. These studies have contributed to developing different approaches using fuzzy programming, uncertainty theory, and related concepts to solve multi-objective solid transportation problems with uncertain parameters.

This paper presents a case study carried out on a private sector company in Egypt intending to ascertain the minimum number of trucks required to fulfill the decision-makers’ objectives of transporting the company’s fleet of trucks from multiple sources to various destinations. This objective is complicated by the diversity of truck types and transported products, as well as the decision-makers’ multiple priorities, specifically the cost of fuel consumption and the timeliness of truck arrival.

In contrast to previous research on the transportation problem, this paper introduces a novel approach that combines the multi-dimensional solid transportation problem framework with a multi-objective optimization technique. Building upon previous studies, which often focused on single-objective solutions and overlooked specific constraints, our research critically analyzes the limitations of these approaches. We identify the need for comprehensive solutions that account for the complexities of diverse truck fleets and transported products, as well as the decision-makers’ multiple priorities. By explicitly addressing these shortcomings, our primary goal is to determine the minimum number of trucks required to fulfill the decision-makers’ objectives, while simultaneously optimizing fuel consumption and transportation timeliness. Through this novel approach, we contribute significantly to the field by advancing the understanding of the transportation problem and providing potential applications in various domains. Our research not only offers practical solutions for real-world scenarios but also demonstrates the potential for improving transportation efficiency and cost-effectiveness in other industries or contexts. The following sections will present a comparative analysis of the proposed work, highlighting the advancements and novelty introduced by our approach.

Methods/experimental

This study uses a case study from Egypt to find the optimal distribution of a private sector company’s truck fleet under various optimization and multi-objective conditions. Specifically, the study aims to optimize the distribution of a private sector company’s truck fleet by solving a multi-objective solid transportation problem (MOSTP) and comparing three different methods for decision-making.

Design and setting

This study uses a case study design in a private sector company in Egypt. The study focuses on distributing the company’s truck fleet to transport products from factories to distribution centers.

Participants or materials

The participants in this study are the transportation planners and managers of the private sector company in Egypt. The materials used in this study include data on the truck fleet, sources, destinations, and products.

Processes and methodologies

The study employs the multi-objective multi-dimensional solid transportation problem (MOMDSTP) to determine the optimal solution for the company’s truck fleet distribution, considering two competing objectives: fuel consumption cost and total shipping time. The MOMDSTP considers the number and types of trucks, sources, destinations, and products and considers the supply and demand constraints.

To solve the MOMDSTP, three decision-making methods are employed: Zimmermann Programming Technique, Global Criteria Method, and Minimum Distance Method. The first two methods directly yield the best compromise solution (BCS), whereas the last method generates non-dominated extreme points by assigning different weights to each objective. Lingo software is used to obtain the optimal solutions for fuel consumption cost and time and the BCS and solutions with different weights for both objectives.

Ethics approval and consent

This study does not involve human participants, data, or tissue, nor does it involve animals. Therefore, ethics approval and consent are not applicable.

Statistical analysis

Statistical analysis is not conducted in this study. However, the MOMDSTP model and three well-established decision-making methods are employed to derive the optimal distribution of the company’s truck fleet under various optimization and multi-objective conditions.

In summary, this study uses a case study design to find the optimal distribution of a private sector company’s truck fleet under various optimization and multi-objective conditions. The study employs the MOMDSTP and three methods for decision-making, and data on the truck fleet, sources, destinations, and products are used as materials. Ethics approval and consent are not applicable, and statistical analysis is not performed.

Multi-objective transportation problem

The multi-objective optimization problem is a complex issue that demands diverse approaches to determine the most satisfactory solution. Prevalent techniques employed in this domain include the Weighted Sum Method, Minimum Distance Method, Zimmermann Programming Technique, and Global Criteria Method. Each method offers its own benefits and limitations, and the selection of a specific method depends on the nature of the problem and the preferences of the decision-makers [ 21 ].

This section discusses various methodologies employed to identify the most optimal solution(s) for the multi-objective multi-dimensional solid transportation problem (MOMDSTP), which is utilized as the basis for the case study. These methodologies encompass the Minimum Distance Method (MDM), the Zimmermann Programming Technique, and the Global Criteria Method [ 22 ].

Zimmermann Programming Technique

The Zimmermann Programming Technique (ZPT) is a multi-objective optimization approach that was developed by Professor Hans-Joachim Zimmermann in the late 1970s. This technique addresses complex problems with multiple competing objectives that cannot be optimized simultaneously. Additionally, it incorporates the concept of an “aspiration level,” representing the minimum acceptable level for each objective. The aspiration level ensures that the solution obtained is satisfactory for each objective. If the solution does not meet the aspiration level for any objective, the weights are adjusted, and the optimization process is iterated until a satisfactory solution is obtained.

A key advantage of ZPT is its ability to incorporate decision-makers’ preferences and judgments into the decision-making process. The weights assigned to each objective are based on the decision-maker’s preferences, and the aspiration levels reflect their judgments about what constitutes an acceptable level for each objective [ 23 ].

The Zimmermann Programming Technique empowers decision-makers to incorporate multiple objectives and achieve a balanced solution. By assigning weights to objectives, a trade-off can be made to find a compromise that meets various criteria. For example, this technique can optimize cost, delivery time, and customer satisfaction in supply chain management [ 24 ]. However, the interpretation of results may require careful consideration, and computational intensity can increase with larger-scale and complex problems.

In order to obtain the solution, each objective is considered at a time to get the lower and upper bounds for that objective. Let for objective, and are the lower (min) and upper (max) bounds. The membership functions of the first and second objective functions can be generated based on the following formula [ 25 ]:

Next, the fuzzy linear programming problem is formulated using the max–min operator as follows:

Maximize min ${\mu }_{k}\left({F}_{k}\left(x\right)\right)$

Subject to ${g}_{i}\left(x\right) \left\{ \le ,= , \ge \right\}{b}_{i}\mathrm{ where }\;i = 1, 2, 3, ..., m.$

Moreover, x ≥ 0.

Global Criteria Method

The Global Criteria Method is a multi-objective optimization method that aims to identify the set of ideal solutions based on predetermined criteria. This method involves defining a set of decision rules that assess the feasibility and optimality of the solutions based on the objectives and constraints [ 26 ]. By applying decision rules, solutions that fail to meet the predetermined criteria are eliminated, and the remaining solutions are ranked [ 27 ].

The Global Criteria Method assesses overall system performance, aiding decision-makers in selecting solutions that excel in all objectives. However, it may face challenges when dealing with conflicting objectives [ 28 ]. Furthermore, it has the potential to overlook specific details, and the choice of aggregation function or criteria can impact the results by favoring specific solutions or objectives.

Let us consider the following ideal solutions:

f 1* represents the ideal solution for the first objective function,

f 2* represents the ideal solution for the second objective function, and

n 1* represents the ideal solution for the nth objective function.

Objective function formula:

Minimize the objective function F = $\sum_{k=1}^{n}{(\frac{{f}_{k}\left({x}^{*}\right)-{f}_{k}(x)}{{f}_{k}({x}^{*})})}^{p}$

Subject to the constraints: g i ( x ) $\le$ 0, i = 1, 2,.., m

The function fk( x ) can depend on variables x 1 , x 2 , …, x n .

Minimum Distance Method

The Minimum Distance Method (MDM) is a novel distance-based model that utilizes the goal programming weighted method. The model aims to minimize the distances between the ideal objectives and the feasible objective space, leading to an optimal compromise solution for the multi-objective linear programming problem (MOLPP) [ 29 ]. To solve MOLPP, the proposed model breaks it down into a series of single objective subproblems, with the objectives transformed into constraints. To further enhance the compromise solution, priorities can be defined using weights, and a criterion is provided to determine the best compromise solution. A significant advantage of this approach is its ability to obtain a compromise solution without any specific preference or for various preferences.

The Minimum Distance Method prioritizes solutions that closely resemble the ideal or utopian solution, assisting decision-makers in ranking and identifying high-performing solutions. It relies on a known and achievable ideal solution, and its sensitivity to the chosen reference point can influence results. However, it does not provide a comprehensive trade-off solution, focusing solely on proximity to the ideal point [ 30 ].

The mathematical formulation for MDM for MOLP is as follows:

The formulation for multi-objective linear programming (MOLP) based on the minimum distance method is referred to[ 31 ]. It is possible to derive the multi-objective transportation problem with two objective functions using this method and its corresponding formula.

Subject to the following constraints:

f * 1 , f * 2 : the obtained ideal objective values by solving single objective STP.

w 1 , w 2 : weights for objective1 and objective2 respectively.

f 1, f 2: the objective values for another efficient solution.

d : general deviational variable for all objectives.

${{c}_{ij}^{1}, c}_{ij}^{2}$ : the unit cost for objectives 1 and 2 from source i to destination j .

${{x}_{ij}^{1}, x}_{ij}^{2}$ : the amount to be shipped when optimizing for objectives 1 and 2 from source i to destination j .

Mathematical model for STP

The transportation problem (TP) involves finding the best method to ship a specific product from a defined set of sources to a designated set of destinations, while adhering to specific constraints. In this case, the objective function and constraint sets take into account three-dimensional characteristics instead of solely focusing on the source and destination [ 32 ]. Specifically, the TP considers various modes of transportation, such as ships, freight trains, cargo aircraft, and trucks, which can be used to represent the problem in three dimensions When considering a single mode of transportation, the TP transforms into a solid transportation problem (STP), which can be mathematically formulated as follows:

The mathematical form of the solid transportation problem is given by [ 33 ]:

Subject to:

Z = the objective function to be minimized

m = the number of sources in the STP

n = the number of destinations in the STP

p = the number of different modes of transportation in the STP

x ijk represents the quantity of product transported from source i to destination j using conveyance k

c ijk = the unit transportation cost for each mode of transportation in the STP

a i = the amount of products available at source i

b j = the demand for the product at destination j

e k = the maximum amount of product that can be transported using conveyance k

The determination of the size of the fleet for each type of truck that is dispatched daily from each factory to all destinations for the transportation of various products is expressed formally as follows:

z ik denotes the number of trucks of type k that are dispatched daily from factory i .

C k represents the capacity of truck k in terms of the number of pallets it can transport.

x ijk denotes a binary decision variable that is set to one if truck k is dispatched from factory i to destination j to transport product p , and zero otherwise. The summation is performed over all destinations j and all products p .

This case study focuses on an Egyptian manufacturing company that produces over 70,000 pallets of various water and carbonated products daily. The company has 25 main distribution centers and eight factories located in different industrial cities in Egypt. The company’s transportation fleet consists of hundreds of trucks with varying capacities that are used to transport products from factories to distribution centers. The trucks have been classified into three types (type A, type B, and type C) based on their capacities. The company produces three different types of products that are packaged in pallets. It was observed that the sizes and weights of the pallets are consistent across all product types The main objective of this case study is to determine the minimum number of each truck type required in the manufacturer’s garage to minimize fuel consumption costs and reduce product delivery time.

The problem was addressed by analyzing the benefits of diversifying trucks and implementing the solid transport method. Subsequently, the problem was resolved while considering the capacities of the sources and the requirements of the destinations. The scenario involved shipping products using a single type of truck, and the fuel consumption costs were calculated accordingly. The first objective was to reduce the cost of fuel consumption on the one-way journey from the factories to the distribution centers. The second objective was to reduce the time of arrival of the products to the destinations. The time was calculated based on the average speed of the trucks in the company’s records, which varies depending on the weight and size of the transported goods.

To address the multiple objectives and the uncertainty in supply and demand, an approach was adopted to determine the minimum number of trucks required at each factory. This approach involved determining the maximum number of trucks of each type that should be present in each factory under all previous conditions. The study emphasizes the significance of achieving a balance between reducing transportation costs and time while ensuring trucks are capable of accommodating quantities of any size, thus avoiding underutilization.

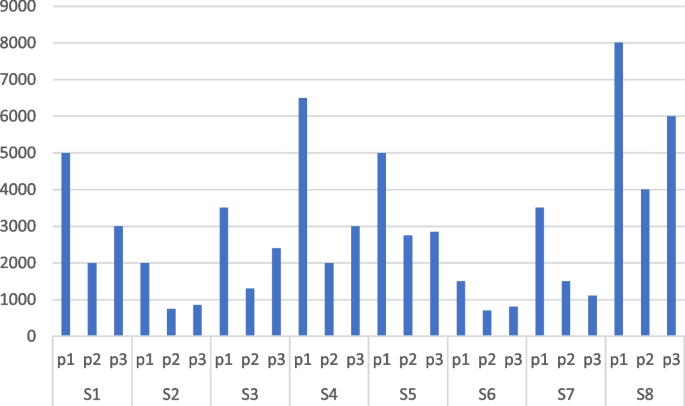

Figure 1 presents the mean daily output, measured in pallets, for each factory across three distinct product types. Additionally, Fig. 2 displays the average daily demand, measured in pallets, for the distribution centers of the same three product types.

No. of pallets in each source

No. of pallets in each destination

Results and discussion

As a result of the case study, the single objective problems of time and fuel consumption cost have been solved. The next step is to prepare a model for the multi-objective multi-dimensional solid transportation problem. Prior to commencing, it is necessary to determine the upper and lower bounds for each objective.

Assuming the first objective is fuel consumption cost and the second objective is time, we calculate the upper and lower bounds as follows:

The lower bound for the first objective, “cost,” is generated from the optimal solution for its single-objective model, denoted as Z 1 ( x 1 ), and equals 70,165.50 L.E.

The lower bound for the second objective, “time,” is generated from the optimal solution for its single-objective model, denoted as Z 2 ( x 2 ), and equals 87,280 min.

The upper bound for the first objective is obtained by multiplying c ijkp for the second objective by x ijkp for the first objective. The resulting value is denoted as Z 1 ( x 2 ) and equals 73,027.50 L.E.

The upper bound for the second objective is obtained by multiplying t ijkp for the first objective by x ijkp for the second objective. The resulting value is denoted as Z 2 ( x 1 ) and equals 88,286.50 min.

As such, the aspiration levels for each objective are defined from the above values by evaluating the maximum and minimum value of each objective.

The aspiration level for the first objective, denoted as F 1, ranges between 70,165.50 and 73,027.50, i.e., 70,165.50 < = F 1 < = 730,27.50.

The aspiration level for the second objective, denoted as F 2, ranges between 87,280 and 88,286.50, i.e., 87,280 < = F 2 < = 88,286.50.

The objective function for the multi-objective multidimensional solid transport problem was determined using the Zimmermann Programming Technique, Global Criteria Method, and Minimum Distance Method. The first two methods directly provided the best compromise solution (BCS), while the last method generated non-dominated extreme points by assigning different weights to each objective and finding the BCS from them. The best compromise solution was obtained using the Lingo software [ 34 ]. Table 1 and Fig. 3 present the objective values for the optimal solutions of fuel consumption cost and time, the best compromise solution, and solutions with different weights for both objectives. Figure 4 illustrates the minimum required number of each type of truck for daily transportation of various products from sources to destinations.

Objective value in different cases

Ideal distribution of the company’s truck fleet

The primary objective of the case study is to determine the minimum number of trucks of each type required daily at each garage for transporting products from factories to distribution centers. The minimum number of trucks needs to be flexible, allowing decision-makers to make various choices, such as minimizing fuel consumption cost, delivery time, or achieving the best compromise between different objectives. To determine the minimum number of required trucks, we compare all the previously studied cases and select the largest number that satisfies the condition: min Zik (should be set) = max Zik (from different cases). Due to the discrepancy between the truck capacity and the quantity of products to be transported, the required number of trucks may have decimal places. In such cases, the fraction is rounded to the nearest whole number. For example, if the quantity of items from a location requires one and a half trucks, two trucks of the specified type are transported on the first day, one and a half trucks are distributed, and half a truck remains in stock at the distribution center. On the next day, only one truck is transferred to the same distribution center, along with the semi-truck left over from the previous day, and so on. This solution may be preferable to transporting trucks that are not at full capacity. Table 2 and Fig. 5 depict the ideal distribution of the company’s truck fleet under various optimization and multi-objective conditions.

Min. No. of trucks should be set for different cases

Conclusions

In conclusion, this research paper addresses the critical issue of optimizing transportation within the context of logistics and supply chain management, specifically focusing on the methods known as the solid transportation problem (STP) and the multi-dimensional solid transportation problem (MDSTP). The study presents a case study conducted on a private sector company in Egypt to determine the optimal distribution of its truck fleet under different optimization and multi-objective conditions.

The research utilizes the multi-objective multi-dimensional solid transportation problem (MOMDSTP) to identify the best compromise solution, taking into account fuel consumption costs and total shipping time. Three decision-making methods, namely the Zimmermann Programming Technique, the Global Criteria Method, and the Minimum Distance Method, are employed to derive optimal solutions for the objectives.

The findings of this study make a significant contribution to the development of approaches for solving multi-objective solid transportation problems with uncertain parameters. The research addresses the complexities of diverse truck fleets and transported products by incorporating fuzzy programming, uncertainty theory, and related concepts. It critically examines the limitations of previous approaches that often focused solely on single-objective solutions and overlooked specific constraints.

The primary objective of this research is to determine the minimum number of trucks required to fulfill decision-makers objectives while optimizing fuel consumption and transportation timeliness. The proposed approach combines the framework of the multi-dimensional solid transportation problem with a multi-objective optimization technique, offering comprehensive solutions for decision-makers with multiple priorities.

This study provides practical solutions for real-world transportation scenarios and demonstrates the potential for enhancing transportation efficiency and cost-effectiveness in various industries or contexts. The comparative analysis of the proposed work highlights the advancements and novelty introduced by the approach, emphasizing its significant contributions to the field of transportation problem research.

Future research should explore additional dimensions of the multi-objective solid transportation problem and incorporate other decision-making methods or optimization techniques. Additionally, incorporating uncertainty analysis and sensitivity analysis can enhance the robustness and reliability of the proposed solutions. Investigating the applicability of the approach in diverse geographical contexts or industries would yield further insights and broaden the potential applications of the research findings.

Availability of data and materials

The data that support the findings of this study are available from the company but restrictions apply to the availability of these data, which were used under license for the current study, and so are not publicly available. Data are however available from the authors upon reasonable request. Please note that some data has been mentioned in the form of charts as agreed with the company.

Abbreviations

Solid transportation problem

Multi-objective solid transportation problems

Multi-dimensional solid transportation problem

Multi-objective multi-dimensional solid transportation problem

Best compromise solution

Taha HA (2013) Operations research: an introduction. Pearson Education India

Li T et al (2020) Federated optimization in heterogeneous networks. Proc Mach Learn Syst 2:429–450

Google Scholar

Babu MA et al (2020) A brief overview of the classical transportation problem.

Winston WL (2022) Operations research: applications and algorithms. Cengage Learning

Pratihar J et al (2020) Transportation problem in neutrosophic environment, in Neutrosophic graph theory and algorithms. IGI Global, p 180–212

Guo G, Obłój J (2019) Computational methods for martingale optimal transport problems. Ann Appl Probab 29(6):3311–3347

Article MathSciNet MATH Google Scholar

Marwan M (2022) Optimasi biaya distribusi material Dengan Metode NWC (North West Corner) DAN Metode VAM (Vogel Approximation Method) PADA PT XYZ. IESM J (Indust Eng Syst Manage J) 2(2):137–146

Qiuping N et al (2023) A parametric neutrosophic model for the solid transportation problem. Manag Decis 61(2):421–442

Article Google Scholar

Singh S, Tuli R, Sarode D (2017) A review on fuzzy and stochastic extensions of the multi index transportation problem. Yugoslav J Oper Res 27(1):3–29

Baidya A, Bera UK (2019) Solid transportation problem under fully fuzzy environment. Int J Math Oper Res 15(4):498–539

Berbatov K et al (2022) Diffusion in multi-dimensional solids using Forman’s combinatorial differential forms. Appl Math Model 110:172–192

Carlier G (2003) On a class of multidimensional optimal transportation problems. J Convex Anal 10(2):517–530

MathSciNet MATH Google Scholar

Zaki SA et al (2012) Efficient multiobjective genetic algorithm for solving transportation, assignment, and transshipment problems. Appl Math 03(01):92–99

Article MathSciNet Google Scholar

Latpate R, Kurade SS (2022) Multi-objective multi-index transportation model for crude oil using fuzzy NSGA-II. IEEE Trans Intell Transp Syst 23(2):1347–1356

Bélanger V, Ruiz A, Soriano P (2019) Recent optimization models and trends in location, relocation, and dispatching of emergency medical vehicles. Eur J Oper Res 272(1):1–23

Kar MB et al (2018) A multi-objective multi-item solid transportation problem with vehicle cost, volume and weight capacity under fuzzy environment. J Intell Fuzzy Syst 35(2):1991–1999

Mirmohseni SM, Nasseri SH, Zabihi A (2017) An interactive possibilistic programming for fuzzy multi objective solid transportation problem. Appl Math Sci 11:2209–2217

Kakran VY, Dhodiya JM (2021) Multi-objective capacitated solid transportation problem with uncertain variables. Int J Math, Eng Manage Sci 6(5):1406–1422

MATH Google Scholar

Chen L, Peng J, Zhang B (2017) Uncertain goal programming models for bicriteria solid transportation problem. Appl Soft Comput 51:49–59

Khalifa HAE-W, Kumar P, Alharbi MG (2021) On characterizing solution for multi-objective fractional two-stage solid transportation problem under fuzzy environment. J Intell Syst 30(1):620–635

El-Shorbagy MA et al (2020) Evolutionary algorithm for multi-objective multi-index transportation problem under fuzziness. J Appl Res Ind Eng 7(1):36–56

Uddin MS et al (2021) Goal programming tactic for uncertain multi-objective transportation problem using fuzzy linear membership function. Alex Eng J 60(2):2525–2533

Hosseinzadeh E (2023) A solution procedure to solve multi-objective linear fractional programming problem in neutrosophic fuzzy environment . J Mahani Math Res. 111–126. https://jmmrc.uk.ac.ir/article_3728_bc0be59dc0f595cc32faae1991cd12f9.pdf

Jagtap K, and Kawale S (2017) Multi-Dimensional-Multi-Objective-Transportation-Problem-by-Goal-Programming . Int J Sci Eng Res 8(6):568–573

Paratne P, and Bit A (2019) Fuzzy programming technique with new exponential membership function for the solution of multiobjective transportation problem with mixed constraints. J Emerg Technol Innov Res. https://www.researchgate.net/profile/Mohammed-Rabie-3/publication/363480949_A_case_study_on_the_optimization_of_multi-objective_functions_transportation_model_for_public_transport_authority_Egypt/links/631f0549071ea12e362a9214/A-case-study-on-the-optimization-of-multi-objective-functions-transportation-model-for-public-transport-authority-Egypt.pdf

Annamalaınatarajan R, and Swaminathan M (2021) Uncertain multi–objective multi–item four dimensional fractional transportation model . Ann Rom Soc Cell Biol. 231–247. https://www.annalsofrscb.ro/index.php/journal/article/download/2457/2063

Mohammed A (2020) Towards a sustainable assessment of suppliers: an integrated fuzzy TOPSIS-possibilistic multi-objective approach. Ann Oper Res 293:639–668

Umarusman N (2019) Using global criterion method to define priorities in Lexicographic goal programming and an application for optimal system design . MANAS Sosyal Araştırmalar Dergisi. 8(1):326–341

Kamal M et al (2018) A distance based method for solving multi-objective optimization problems . J Mod Appl Stat Methods 17(1). https://digitalcommons.wayne.edu/jmasm/vol17/iss1/21

Kaur L, Rakshit M, Singh S (2018) A new approach to solve multi-objective transportation problem. Appl Appl Math: Int J (AAM) 13(1):10

Kamal M et al (2018) A distance based method for solving multi-objective optimization problems. J Mod Appl Stat Methods 17(1):21

Yang L, Feng Y (2007) A bicriteria solid transportation problem with fixed charge under stochastic environment. Appl Math Model 31(12):2668–2683

Article MATH Google Scholar

Munot DA, Ghadle KP (2022) A GM method for solving solid transportation problem. J Algebraic Stat 13(3):4841–4846

Gupta N, and Ali I (2021) Optimization with LINGO-18 problems and applications. CRC Press

Download references

Acknowledgements

Not applicable.

Author information

Authors and affiliations.

Automotive and Tractor Engineering Department, Minia University, Minia, Egypt

Mohamed H. Abdelati, Ali M. Abd-El-Tawwab & M Rabie

Automotive and Tractor Engineering Department, Helwan University, Mataria, Egypt

Elsayed Elsayed M. Ellimony

You can also search for this author in PubMed Google Scholar

Contributions

MHA designed the research study, conducted data collection, analyzed the data, contributed to the writing of the paper, and reviewed and edited the final manuscript. AMA contributed to the design of the research study, conducted a literature review, analyzed the data, contributed to the writing of the paper, and reviewed and edited the final manuscript. EEME contributed to the design of the research study, conducted data collection, analyzed the data, contributed to the writing of the paper, and reviewed and edited the final manuscript.MR contributed to the design of the research study, conducted programming using Lingo software and others, analyzed the data, contributed to the writing of the paper, and reviewed and edited the final manuscript. All authors have read and approved the manuscript.

Corresponding author

Correspondence to Mohamed H. Abdelati .

Ethics declarations

Competing interests.

The authors declare that they have no competing interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/ . The Creative Commons Public Domain Dedication waiver ( http://creativecommons.org/publicdomain/zero/1.0/ ) applies to the data made available in this article, unless otherwise stated in a credit line to the data.

Reprints and Permissions

About this article

Cite this article.

Abdelati, M.H., Abd-El-Tawwab, A.M., Ellimony, E.E.M. et al. Solving a multi-objective solid transportation problem: a comparative study of alternative methods for decision-making. J. Eng. Appl. Sci. 70 , 82 (2023). https://doi.org/10.1186/s44147-023-00247-z

Download citation

Received : 19 April 2023

Accepted : 27 June 2023

Published : 20 July 2023

DOI : https://doi.org/10.1186/s44147-023-00247-z

Share this article

Anyone you share the following link with will be able to read this content:

Sorry, a shareable link is not currently available for this article.

Provided by the Springer Nature SharedIt content-sharing initiative

Decision-making
Multi-objective
Solid transpiration

solved transportation problems in operations research

Transportation Problem in Operational Research

The transportation problem in operational research is concerned with finding the minimum cost of transporting a single commodity from a given number of sources (e.g. factories) to a given number of destinations (e.g. warehouses). These types of problems can be solved by general network methods, but here we use a specific transportation algorithm.

The data of the model include

1. The level of supply at each source and the amount of demand at each destination.

2. The unit transportation cost of the commodity from each source to each destination.

Since there is only one commodity, a destination can receive its demand from more than one source. The objective is to determine how much should be shipped from each source to each destination so as to minimise the total transportation cost.

Types of Transportation Problem in Operational Research

Balanced Transportation Problem
Unbalanced Transportation Problem

Details about balanced and unbalanced transportation problem you find in attached pdf notes at end of this article.

Solution of the transportation problem

Stage I: Finding an initial basic feasible solution.

Stage II: Checking for optimality

Existence of Feasible Solution : A necessary and sufficient condition for the existence of a feasible solution to the general transportation problem is that

Total supply = Total demand

Existence of Basic Feasible Solution: The number of basic variables of the general transportation problem at any stage of feasible solution must be ( m + n – 1). Now degenerate basic feasible solution (a feasible solution) involving exactly ( m + n – 1) positive variables is known as non-degenerate basic feasible solution otherwise it is said to be degenerate basic feasible . These allocations should be independent positions in case of non-degenerate basic feasible solutions.

Optimum Solution: A feasible solution is said to be optimal, if it minimizes the total transportation cost.
Unbalance TP If total supply is not equal to total demand, then it balance with dummy source or destination.

Finding an Initial Basic Feasible Solutions

There are three methods as given below

Northwest corner method
Least cost method
Vogel’s approximation method (or Penalty method)

Steps for North-West Corner Method

Allocate the maximum amount allowable by the supply and demand constraints to the variable x11 (i.e. the cell in the top left corner of the transportation tableau).
If a column (or row) is satisfied, cross it out. The remaining decision variables in that column (or row) are non-basic and are set equal to zero. If a row and column are satisfied simultaneously, cross only one out (it does not matter which).
Adjust supply and demand for the non-crossed out rows and columns.
Allocate the maximum feasible amount to the first available non-crossed out element in the next column (or row).
When exactly one row or column is left, all the remaining variables are basic and are assigned the only feasible allocation.

Note: Solved example you find in video or in PDF

Steps for Least Cost Method

Assign as much as possible to the cell with the smallest unit cost in the entire tableau. If there is a tie then choose arbitrarily.
Cross out the row or column which has satisfied supply or demand. If a row and column are both satisfied then cross out only one of them.
Adjust the supply and demand for those rows and columns which are not crossed out.

Steps for Vogel’s Approximation Method

Determine a penalty cost for each row (column) by subtracting the lowest unit cell cost in the row (column) from the next lowest unit cell cost in the same row (column).
Identify the row or column with the greatest penalty cost. Break the ties arbitrarily (if there are any). Allocate as much as possible to the variable with the lowest unit cost in the selected row or column. Adjust the supply and demand and cross out the row or column that is already satisfied. If a row and column are satisfied simultaneously, only cross out one of the two and allocate a supply or demand of zero to the one that remains.
If there is exactly one row or column left with a supply or demand of zero, stop.
If there is one row (column) left with a positive supply (demand), determine the basic variables in the row (column) using the Minimum Cell Cost Method. Stop.
If all of the rows and columns that were not crossed out have zero supply and demand (remaining), determine the basic zero variables using the Minimum Cell Cost Method. Stop.
In any other case, continue with Step 1.

Watch Video on Transportation Problem in Hindi

Download PDF Here

Download PDF

Adblocker Detected

All Courses

Interview Questions
Free Courses
Career Guide
PGP in Data Science and Business Analytics
PG Program in Data Science and Business Analytics Classroom
PGP in Data Science and Engineering (Data Science Specialization)
PGP in Data Science and Engineering (Bootcamp)
PGP in Data Science & Engineering (Data Engineering Specialization)
NUS Decision Making Data Science Course Online
Master of Data Science (Global) – Deakin University
MIT Data Science and Machine Learning Course Online
Master’s (MS) in Data Science Online Degree Programme
MTech in Data Science & Machine Learning by PES University
Data Analytics Essentials by UT Austin
Data Science & Business Analytics Program by McCombs School of Business
MTech In Big Data Analytics by SRM
M.Tech in Data Engineering Specialization by SRM University
M.Tech in Big Data Analytics by SRM University
PG in AI & Machine Learning Course
Weekend Classroom PG Program For AI & ML
AI for Leaders & Managers (PG Certificate Course)
Artificial Intelligence Course for School Students
IIIT Delhi: PG Diploma in Artificial Intelligence
Machine Learning PG Program
MIT No-Code AI and Machine Learning Course
Study Abroad: Masters Programs
MS in Information Science: Machine Learning From University of Arizon
SRM M Tech in AI and ML for Working Professionals Program
UT Austin Artificial Intelligence (AI) for Leaders & Managers
UT Austin Artificial Intelligence and Machine Learning Program Online
MS in Machine Learning
IIT Roorkee Full Stack Developer Course
IIT Madras Blockchain Course (Online Software Engineering)
IIIT Hyderabad Software Engg for Data Science Course (Comprehensive)
IIIT Hyderabad Software Engg for Data Science Course (Accelerated)
IIT Bombay UX Design Course – Online PG Certificate Program
Online MCA Degree Course by JAIN (Deemed-to-be University)
Cybersecurity PG Course
Online Post Graduate Executive Management Program
Product Management Course Online in India
NUS Future Leadership Program for Business Managers and Leaders
PES Executive MBA Degree Program for Working Professionals
Online BBA Degree Course by JAIN (Deemed-to-be University)
MBA in Digital Marketing or Data Science by JAIN (Deemed-to-be University)
Master of Business Administration- Shiva Nadar University
Post Graduate Diploma in Management (Online) by Great Lakes
Online MBA Program by Shiv Nadar University
Cloud Computing PG Program by Great Lakes
University Programs
Stanford Design Thinking Course Online
Design Thinking : From Insights to Viability
PGP In Strategic Digital Marketing
Post Graduate Diploma in Management
Master of Business Administration Degree Program
MS Artificial Intelligence and Machine Learning
MS in Data Analytics
Study MBA in USA
Study MS in USA
Data Analytics Course with Job Placement Guarantee
Software Development Course with Placement Guarantee
MIT Data Science Program
AI For Leaders Course
Data Science and Business Analytics Course
Cyber Security Course
Pg Program Online Artificial Intelligence Machine Learning
Pg Program Online Cloud Computing Course
Data Analytics Essentials Online Course
MIT Programa Ciencia De Dados Machine Learning
MIT Programa Ciencia De Datos Aprendizaje Automatico
Program PG Ciencia Datos Analitica Empresarial Curso Online
Mit Programa Ciencia De Datos Aprendizaje Automatico
Program Pg Ciencia Datos Analitica Empresarial Curso Online
Online Data Science Business Analytics Course
Online Ai Machine Learning Course
Online Full Stack Software Development Course
Online Cloud Computing Course
Cybersecurity Course Online
Online Data Analytics Essentials Course
Ai for Business Leaders Course
Mit Data Science Program
No Code Artificial Intelligence Machine Learning Program
Ms Information Science Machine Learning University Arizona
Wharton Online Advanced Digital Marketing Program
Data Science
Introduction to Data Science
Data Scientist Skills
Get Into Data Science From Non IT Background
Data Scientist Salary
Data Science Job Roles
Data Science Resume
Data Scientist Interview Questions
Data Science Solving Real Business Problems
Business Analyst Vs Data Scientis
Data Science Applications
Must Watch Data Science Movies
Data Science Projects
Free Datasets for Analytics
Data Analytics Project Ideas
Mean Square Error Explained
Hypothesis Testing in R
Understanding Distributions in Statistics
Bernoulli Distribution
Inferential Statistics
Analysis of Variance (ANOVA)
Sampling Techniques
Outlier Analysis Explained
Outlier Detection
Data Science with K-Means Clustering
Support Vector Regression
Multivariate Analysis
What is Regression?
An Introduction to R – Square
Why is Time Complexity essential?
Gaussian Mixture Model
Genetic Algorithm
Business Analytics
What is Business Analytics?
Business Analytics Career
Major Misconceptions About a Career in Business Analytics
Business Analytics and Business Intelligence Possible Career Paths for Analytics Professionals
Business Analytics Companies
Business Analytics Tools
Business Analytics Jobs
Business Analytics Course
Difference Between Business Intelligence and Business Analytics
Python Tutorial for Beginners
Python Cheat Sheet
Career in Python
Python Developer Salary
Python Interview Questions
Python Project for Beginners
Python Books
Python Real World Examples
Python 2 Vs. Python 3
Free Online Courses for Python
Flask Vs. Django
Python Stack
Python Switch Case
Python Main
Data Types in Python
Mutable & Immutable in Python
Python Dictionary
Python Queue
Iterator in Python
Regular Expression in Python
Eval in Python
Classes & Objects in Python
OOPs Concepts in Python
Inheritance in Python
Abstraction in Python
Polymorphism in Python
Fibonacci Series in Python
Factorial Program in Python
Armstrong Number in Python
Reverse a String in Python
Prime Numbers in Python
Pattern Program in Python
Palindrome in Python
Convert List to String in Python
Append Function in Python
REST API in Python
Python Web Scraping using BeautifulSoup
Scrapy Tutorial
Web Scraping using Python
Jupyter Notebook
Spyder Python IDE
Free Data Science Course
Free Data Science Courses
Data Visualization Courses

Transportation Problem Explained and how to solve it?

Introduction
Transportation Problem
Balanced Problem
Unbalanced Problem

Contributed by: Patrick

Operations Research (OR) is a state of art approach used for problem-solving and decision making. OR helps any organization to achieve their best performance under the given constraints or circumstances. The prominent OR techniques are,

Linear programming
Goal programming
Integer programming
Dynamic programming
Network programming

One of the problems the organizations face is the transportation problem. It originally means the problem of transporting/shipping the commodities from the industry to the destinations with the least possible cost while satisfying the supply and demand limits. It is a special class of linear programming technique that was designed for models with linear objective and constraint functions. Their application can be extended to other areas of operation, including

Scheduling and Time management
Network optimization
Inventory management
Enterprise resource planning
Process planning
Routing optimization

The notations of the representation are:

m sources and n destinations

(i , j) joining source (i) and destination (j)

c ij 🡪 transportation cost per unit

x ij 🡪 amount shipped

a i 🡪 the amount of supply at source (i)

b j 🡪 the amount of demand at destination (j)

Transportation problem works in a way of minimizing the cost function. Here, the cost function is the amount of money spent to the logistics provider for transporting the commodities from production or supplier place to the demand place. Many factors decide the cost of transport. It includes the distance between the two locations, the path followed, mode of transport, the number of units that are transported, the speed of transport, etc. So, the focus here is to transport the commodities with minimum transportation cost without any compromise in supply and demand. The transportation problem is an extension of linear programming technique because the transportation costs are formulated as a linear function to the supply capacity and demand. Check out the course on transportation analytics .

Transportation problem exists in two forms.

Balanced

It is the case where the total supply equals the total demand.

It is the case where either the demand is greater than the supply, or vice versa.

In most cases, the problems take a balanced form. It is because usually, the production units work, taking the inventory and the demand into consideration. Overproduction increases the inventory cost whereas under production is challenged by the demand. Hence the trade-off should be carefully examined. Whereas, the unbalanced form exists in a situation where there is an unprecedented increase or decrease in demand.

Let us understand this in a much simpler way with the help of a basic example.

Let us assume that there is a leading global automotive supplier company named JIM. JIM has it’s production plants in many countries and supplies products to all the top automotive makers in the world. For instance, let’s consider that there are three plants in India at places M, N, and O. The capacity of the plants is 700, 300, 550 per day. The plant supplies four customers A, B, C, and D, whose demand is 650, 200, 450, 250 per day. The cost of transport per unit per km in INR and the distance between each source and destination in Kms are given in the tables below.

Here, the objective is to determine the unknown while satisfying all the supply and demand restrictions. The cost of shipping from a source to a destination is directly proportional to the number of units shipped.

Many sophisticated programming languages have evolved to solve OR problems in a much simpler and easier way. But the significance of Microsoft Excel cannot be compromised and devalued at any time. It also provides us with a greater understanding of the problem than others. Hence we will use Excel to solve the problem.

It is always better to formulate the working procedure in steps that it helps in better understanding and prevents from committing any error.

Steps to be followed to solve the problem:

Create a transportation matrix (define decision variables)
Define the objective function
Formulate the constraints
Solve using LP method

Creating a transportation matrix:

A transportation matrix is a way of understanding the maximum possibilities the shipment can be done. It is also known as decision variables because these are the variables of interest that we will change to achieve the objective, that is, minimizing the cost function.

Define the objective function:

An objective function is our target variable. It is the cost function, that is, the total cost incurred for transporting. It is known as an objective function because our interest here is to minimize the cost of transporting while satisfying all the supply and demand restrictions.

The objective function is the total cost. It is obtained by the sum product of the cost per unit per km and the decision variables (highlighted in red), as the total cost is directly proportional to the sum product of the number of units shipped and cost of transport per unit per Km.

The column “Total shipped” is the sum of the columns A, B, C, and D for respective rows and the row “Total Demand” is the sum of rows M, N, and O for the respective columns. These two columns are introduced to satisfy the constraints of the amount of supply and demand while solving the cost function.

Formulate the constraints:

The constraints are formulated concerning the demand and supply for respective rows and columns. The importance of these constraints is to ensure they satisfy all the supply and demand restrictions.

For example, the fourth constraint, x ma + x na + x oa = 650 is used to ensure that the number of units coming from plants M, N, and O to customer A should not go below or above the demand that A has. Similarly the first constraint x ma + x mb + x mc + x md = 700 will ensure that the capacity of the plant M will not go below or above the given capacity hence, the plant can be utilized to its fullest potential without compromising the inventory.

Solve using LP method:

The simplest and most effective method to solve is using solver. The input parameters are fed as stated below and proceed to solve.

This is the best-optimized cost function, and there is no possibility to achieve lesser cost than this having the same constraints.

From the solved solution, it is seen that plant M ships 100 units to customer A, 350 units to C and 250 units to D. But why nothing to customer B? And a similar trend can be seen for other plants as well.

What could be the reason for this? Yes, you guessed it right! It is because some other plants ship at a profitable rate to a customer than others and as a result, you can find few plants supplying zero units to certain customers.

So, when will these zero unit suppliers get profitable and can supply to those customers? Wait! Don’t panic. Excel has got away for it too. After proceeding to solve, there appears a dialogue box in which select the sensitivity report and click OK. You will get a wonderful sensitivity report which gives details of the opportunity cost or worthiness of the resource.

Basic explanation for the report variables,

Cell: The cell ID in the excel

Name: The supplier customer pairing

Final value: Number of units shipped (after solving)

Reduced cost: How much should the transportation cost per unit per km should be reduced to make the zero supplying plant profitable and start supplying

Objective coefficient: Current transportation cost per unit per Km for each supplier customer pair

Allowable Increase: It tells us the maximum cost of the current transportation cost per unit per Km can be increased which doesn’t make any changes to the solution

Allowable Decrease: It tells how much maximum the current transportation cost per unit per Km can be lowered which doesn’t make any changes to the solution

Here, look into the first row of the sensitivity report. Plant M supplies to customer A. Here, the transportation cost per unit per Km is ₹14 and 100 units are shipped to customer A. In this case, the transportation cost can increase a maximum of ₹6, and can lower to a maximum of ₹1. For any value within this range, there will not be any change in the final solution.

Now, something interesting. Look at the second row. Between MB, there is not a single unit supplied to customer B from plant M. The current shipping cost is ₹22 and to make this pair profitable and start a business, the cost should come down by ₹6 per unit per Km. Whereas, there is no possibility of increasing the cost by even a rupee. If the shipping cost for this pair comes down to ₹16, we can expect a business to begin between them, and the final solution changes accordingly.

The above example is a balanced type problem where the supply equals the demand. In case of an unbalanced type, a dummy variable is added with either a supplier or a customer based on how the imbalance occurs.

Thus, the transportation problem in Excel not only solves the problem but also helps us to understand how the model works and what can be changed, and to what extent to modify the solution which in turn helps to determine the cost and an optimal supplier.

If you found this helpful, and wish to learn more such concepts, head over to Great Learning Academy and enroll in the free online courses today.
